Home > Products > Detachable Container House > 3x6m Detachable Pastoral Care Pod | Prefabricated Veterinary Field Clinic
Highlight:

3x6m detachable tiny house

,

3x6m detachable container house

,

prefabricated detachable tiny house

Dimensions:
Standard 20ft Or 40ft Container Size
Shipment:
Ship Disassembled
Wallthickness:
50mm To 100mm
Floor Loading Capacity:
150 ㎏/㎡
Frame:
Q235B Galvanized Steel
Wallboard:
Glass Wool Sandwich Panels
Application:
Warehouse
Durability:
Weather-resistant And Corrosion-proof Coating
Wind Resistance:
100km/h
Main Materia:
Light Steel Frame & Sandwich Panel
Services:
2D Floor Plan Solution; 3D Model
Productname:
Prefabricated Container House
Cutting:
Saw Cutting
Assemblytime:
1-3 Days Per Unit
Wind Resistence:
120KM/H
Dimensions:
Standard 20ft Or 40ft Container Size
Shipment:
Ship Disassembled
Wallthickness:
50mm To 100mm
Floor Loading Capacity:
150 ㎏/㎡
Frame:
Q235B Galvanized Steel
Wallboard:
Glass Wool Sandwich Panels
Application:
Warehouse
Durability:
Weather-resistant And Corrosion-proof Coating
Wind Resistance:
100km/h
Main Materia:
Light Steel Frame & Sandwich Panel
Services:
2D Floor Plan Solution; 3D Model
Productname:
Prefabricated Container House
Cutting:
Saw Cutting
Assemblytime:
1-3 Days Per Unit
Wind Resistence:
120KM/H
3x6m Detachable Pastoral Care Pod | Prefabricated Veterinary Field Clinic
3x6m Detachable Pastoral Care Pod | Prefabricated Veterinary Field Clinic
Support rural herd management and livestock health with the portable 3x6m Detachable Pastoral Care Pod presented by Global House (Suzhou) Co., Ltd. Engineered for remote grassland regions and cattle breeding cooperatives across Central Asia, this highly sanitary modular unit can be configured as a regional veterinary clinic, local wool trading office, or forestry warden shelter. Shipped flat-packed for easy setup on simple concrete pier foundations without complex land excavation, it provides an eco-friendly, fully weatherproof, and easily sterilizable rural field station with a reliable 8-10 year service life.

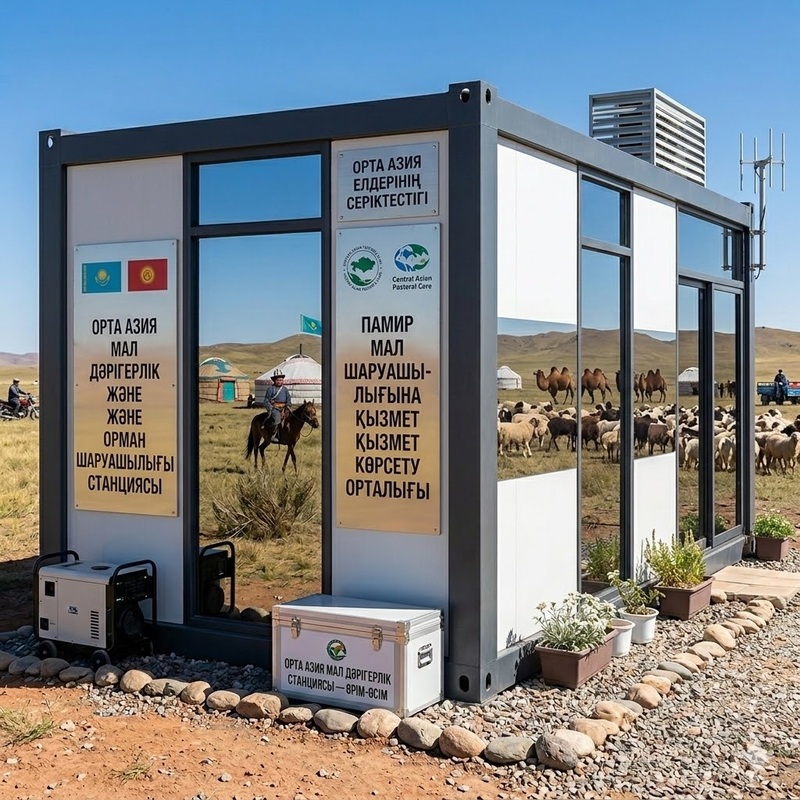

3x6m Detachable Pastoral Care Pod - Prefabricated veterinary field clinic unit
Technical Specifications
Standard Size 5950mm (L) x 3000mm (W) x 2800mm (H)
Main Frame 2.3mm to 3.0mm Spray Painted Galvanization Steel Tube
Wall Partition 50mm/75mm/100mm Rock Wool/EPS/PU Sandwich Panel with 0.3-0.5mm color steel plate
Roof System 0.42mm Color Steel Plate + Insulation cotton + multi-waterproof sealing
Ceiling 0.24mm Color Steel Plate
Floor System 15mm/18mm MGO Board or Cement Fiber Board + PVC floor leather
Doors & Windows 0.4mm Steel door; Plastic Steel Sliding Windows * 2 sets
Resistance Seismic Resistance Grade 8; Wind Resistance Grade 10-11
Service Life 8 - 10 Years
Application Scenarios
  • Alpine Ski Resort Lodges: High-end, multi-unit combined holiday suites, winter resort chalets, and interconnected guest rooms for snow-sport parks.
  • Boutique Mountainous Homestays: Striking multi-floor holiday cabins featuring a continuous upper veranda walkway for panoramic snowy landscape views.
  • Winterized Staff Accommodation Blocks: Highly insulated, secure two-story living quarters and administrative suites for ski resort operators and mountain crews.
  • Tactical Field & Safety Hubs: Reliable emergency response spaces, municipal winter shelter centers, and secure civil defense outposts for sub-zero environments.
Core Advantages
  • Premium Wood-Look & Guard Protection: Combining natural-looking wood aesthetic cladding with robust security barred windows, this unit delivers a warm residential ambiance while preventing forced entry or ice debris impact.
  • Fire-Retardant MGO Flooring System: Outfitted with top-grade 15mm/18mm MGO board subfloors, providing excellent fire resistance, damp isolation, and a flat structural surface that easily supports multi-floor stacking traffic.
  • Sub-Zero Thermal Insulation Envelope: Configured with high-density core sandwich panels and multi-layer structural seals, the cabin creates an exceptional thermal shield that retains interior heat during aggressive alpine winters.
  • Exceptional Flat-Pack Shipping Economics: Engineered for rapid bulk logistics; our precision knock-down layout allows a single 40HQ container to transport up to 18 complete sets, driving down your international landing costs.
  • Rapid Multi-Box Interlocking Setup: Avoid lengthy local building timelines and expensive winter trade labor. A standard assembly crew of 4 workers can completely bolt one structural module together in under 3 hours using basic manual tools.
Simplified 5-Step Installation Guide
  1. Site Inspection: Prepare a flat layout on the resort grounds or anchor the primary corner load points on level, pre-cast concrete pier blocks to protect the natural soil.
  2. Chassis Fastening: Securely connect the primary galvanized floor perimeter framing to the corner castings using high-tensile structural bolts.
  3. Frame & Balcony Elevation: Erect the four white vertical structural columns, bolt the pre-sealed roof framework tightly overhead, and integrate the external stairs and upper walkway balustrades.
  4. Enclosure Insertion: Slide the high-insulation wood-look sandwich panels and the window systems with protective safety grilles smoothly into the precision frame tracks.
  5. Turnkey Finishing: Secure the fire-retardant interior MGO flooring sheets, roll out the durable PVC finish, stack subsequent multi-box frame tiers, and activate the pre-wired electrical networks.
Frequently Asked Questions
  • How well does this cabin handle heavy snow loads, sub-zero freezing, and alpine storms?
    The rigid skeleton uses heavy 2.3mm-3.0mm galvanized steel certified to endure Wind Levels 10-11 and heavy alpine snow accumulation. For snow-melt or heavy rain, the roof integrates an advanced, deep U-shaped internal drainage network and multi-layer weather-sealants for total leak-proof security.
  • What is the maximum ocean freight capacity for a bulk ski resort project?
    By collapsing the modular frames into compact flat-packs, we can safely load up to 18 individual 3x6m cabins inside a single 40HQ ocean container, significantly optimizing wholesale maritime shipping costs.
  • Can the interior layout be customized to include multiple separate bedrooms and bathrooms?
    Absolutely. Because our cabins rely on a self-supporting heavy-caliber steel frame layout, you can easily remove or reposition internal sandwich panels during combined multi-unit setups to create customized multi-room apartments, family suites, or integrated private ensuites.
  • Does this two-story modular chalet require a permanent concrete foundation poured on site?
    No heavy civil concrete work or deep foundations are required. A basic leveled ground surface or simple pre-cast concrete support blocks at the main corner load points are completely sufficient for stable operation, safeguarding scenic resort environments.
  • Is vertical stacking and walkway load stability fully safe with this framework layout?
    Yes. The 2.3mm-3.0mm galvanized structural steel chassis is rated for heavy vertical, seismic, and live walkway loads. It safely supports up to 3-story vertical configurations, and we supply high-tensile structural tie-plates for multi-tier setups.
  • Do the insulated wall and floor panels satisfy strict fire safety regulations?
    Yes. We offer Grade-A fire-resistant Rock Wool or EPS sandwich wall panels paired with non-combustible MGO floor boards, allowing your commercial resort setup to easily satisfy strict local tourism safety and municipal fire regulations.
  • Can we disassemble and relocate the entire hotel block if our resort land lease changes?
    Yes. The detachable bolt-connected design is engineered specifically for long-term mobility. You can effortlessly unbolt the entire dual-level complex, flatpack the panels and steel frames, and transport them to your next project site with zero material wear.
  • Are the pre-installed electrical circuits ready for premium heating or cooling appliances?
    We supply factory pre-wired "plug-and-play" electrical kits—inclusive of bright LED lighting networks and safe power sockets—pre-configured exactly to your destination country's specific voltage, frequency, and plug criteria.
Manufacturer: Global House (Suzhou) Co., Ltd.
