Modern Expandable Container House 10FT 20FT 30FT 40FT With Great Wall Cladding Panels

Modern Expandable Container House With Great Wall Cladding Panels And Premium Backyard Garden Guest Villa Shell

Product Overview

Introduce a breathtaking architectural presence into premium residential landscapes and upscale travel properties with the Modern Expandable Container House with Great Wall Cladding Panels and Premium Backyard Garden Guest Villa Shell engineered by Global House (Suzhou) Co., Ltd. Specially configured to deliver an elite standalone living quarters, this high-end modular building solution provides the ultimate fusion of a professional garden studio and a luxury private retreat built to seamlessly blend with manicured lawns, stone-paved walkways, and high-end suburban estates.

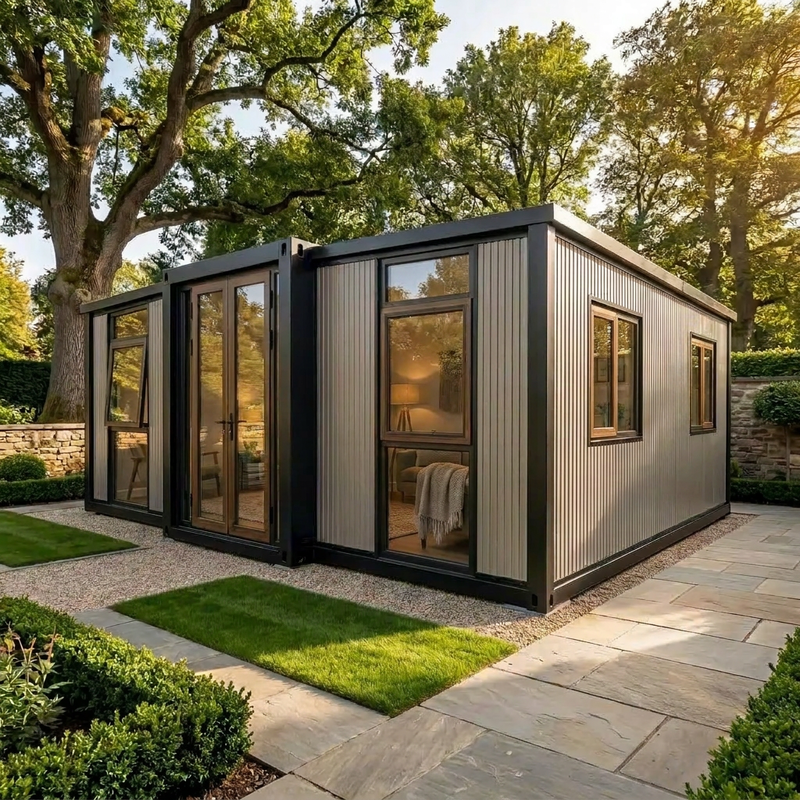

Departing from basic white temporary cabins or rugged industrial boxes, our landscape-optimized backyard guest villa features a sleek, dark-painted structural skeleton paired with distinctively textured, vertical fluted Great Wall cladding panels. Designed for maximum visual prestige and abundant interior natural lighting, the spectacular storefront is uniquely upgraded to an elegant wood grain frame style broken bridge aluminum entrance door with double layer tempered glass, alongside multiple staggered vertical windows that offer secure outward-opening awning ventilation. This innovative folding architecture takes up merely one-quarter of its fully deployed volume during transit, keeping maritime and overland shipping overheads to an absolute minimum. Once positioned on site, its precision mechanical joints allow it to expand smoothly into a surprisingly spacious, fully functional, and highly insulated residential asset within minutes.

Key Advantages

• Multiplied Space and Optimized Freight

  The unique folding mechanism allows up to 4 sets (10FT) or 2 sets (20FT) to fit inside a single 40HQ shipping container. This drastically reduces international logistics expenses per square meter.

• Standardized Cost Efficiency

  Manufactured via a mature assembly line, this model provides an exceptional price advantage for bulk orders, shortening the investment payback period for developers.

• Minimal On Site Labor

  No complex civil engineering is required. A team of 2–3 general laborers can complete the installation within hours using basic lifting equipment.

• High Turnover Mobile Asset

  The heavy-duty bolt-together design supports repeated disassembly and relocation. Your building asset can move with your projects for multiple life cycles.

Specifications and Loading Capacity

Detailed Material Specifications

• Main Steel Frame Q235 Hot-dip galvanized steel, 2.5mm - 3.0mm thickness, with 6mm corner head liner plates for maximum structural safety.

• Wall Panels External wall: 75mm EPS sandwich panel standard (Upgradable to Rock Wool for premium fire resistance). Internal partition: 50mm EPS sandwich panel.

• Roof System External top: 0.35mm corrugated color steel sheet. Insulation: 50mm EPS sandwich panel. Internal ceiling: 200-type aesthetic ceiling board.

• Flooring Subfloor: 18mm fireproof magnesite board (moisture-proof and insect-resistant). Surface: 2.0mm wear-resistant PVC floor leather (Upgradable to 4.0mm SPC flooring).

• Doors and Windows (Optional Upgrade) PVC casement windows (with anti-insect screens) + Aluminum security door.

• Available Upgrades Broken bridge aluminum entrance doors (double glass), KFC doors, aluminum alloy sliding doors, broken bridge aluminum windows, plastic steel sliding windows, ceiling-to-floor glass windows, etc.

• Color Customization Wall panel colors: White, Red Wooden, Dark Gray. Frame colors: White, Black, Dark Gray. Optional: 16mm metal carved board or fluted Great Wall board as exterior wall decoration.

Target Applications

Our high-end expandable Great Wall panel villas are custom-optimized for premium residential extensions and luxury ecotourism hospitality:

• Premium Backyard Garden Guest Villas Luxurious detached secondary dwellings, upscale independent home offices, home fitness pods, or peaceful garden retreats for remote executives.

• Boutique Ecotourism Homestays High-end capsule villas, fluted exterior holiday chalets, and scenic country park suites that command top-tier rental rates.

• Elite Project Command Centers Spacious executive field offices, temporary corporate boardrooms, and highly secure technical plotting rooms for general contractors.

• Utility Buildings High-visibility commercial pop-up retail stores, temporary medical clinics, and portable automated convenience stores.

How It Works (4-Step Deployment)

1. Unloading Lift the folded unit onto leveled, hardened ground or simple concrete piers.

2. Unfolding Wings Release the safety latches, lift the two roof sections in sequence, and then lower the floor sections.

3. Fixing Walls Push the folded side walls outward to a vertical position and install the corner connectors.

4. Sealing Apply prefabricated sealing strips and high-quality structural adhesive at joints to ensure a weather-tight finish.

Frequently Asked Questions

Q1 Are you a manufacturing factory or a trading company? Where is your factory located?

A We are a direct manufacturing factory. Our plant is located in Zhenze Town, Wujiang County, Suzhou City, Jiangsu Province, China. We welcome global clients and third-party inspection agencies to visit us at any time.

Q2 What is the lifespan of this container house? Is it stable under extreme weather?

A Under standard conditions, the galvanized steel frame has a lifespan of 15 to 20 years. Structurally, it is extremely safe; when properly anchored to a foundation, it can resist winds up to 200km/h and withstand up to a magnitude-9 earthquake outside.

Q3 Can the electrical and plumbing systems meet my local country's strict compliance standards?

A Yes. We regularly export to regions with strict compliance requirements. We can pre-install electrical wiring, sockets, and plumbing systems that fully meet specific local certifications (such as CE for Europe or AU/NZS for Australia and New Zealand) to ensure fast council approval.

Q4 How long does it take to build? Do I need professional engineers?

A No professional technicians are needed. We provide comprehensive installation videos and manuals. Generally, 2 workers can master the operation and complete a standard room setup within about 3 hours using basic lifting equipment.

Q5 What is your standard delivery time?

A Delivery time depends on order quantities and customization. For standard sizes and configurations, delivery preparation generally takes 15 to 20 days after receiving the deposit (with standard scaling varying within 5-15 days depending on exact queue lines).

Q6 What should I provide to get a customized layout or design scheme?

A It's very easy! If you have a sketch drawing or reference photo, you can send it to us directly. If not, simply notify us of your requirements, such as the total area, target usage, room/sanitary layout, and material preferences, and our design team will provide a detailed scheme and quotation.

Manufacturer Global House (Suzhou) Co., Ltd.
