Quality A Shape Detachable Container House 20FT With Curtains And External Glass Curtain Walls factory

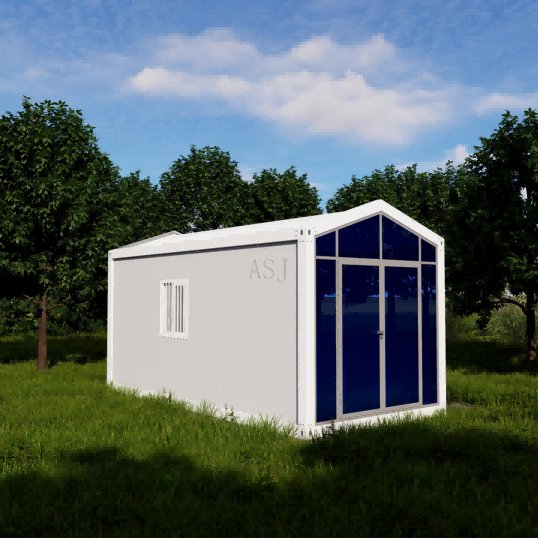

A Shape Detachable Container House 20FT With Curtains And External Glass Curtain Walls

Name: A Shape Detachable Container House 20FT With Curtains And External Glass Curtain Walls
Brand: Global Container (Suzhou) Co., Ltd.
SKU: Detachable Container House
Price: 925.00 USD
Availability: InStock

Product Summary

Affordable 3x6m (18m²) office for sites. 2.3-3.0mm galvanized frame ensures 8-10yr life. High logistics efficiency: 18 sets per 40HQ. Rapid setup: 4 workers in 3h. Supports 3-floor stacking. The ultimate low-cost modular solution for construction camps.

Basic Properties

Place of Origin: Jiangsu, China

Brand Name: Global Container(SuZhou)Co.,Ltd

Certification: ISO 9001 / ISO 14001 / ISO 45001 · CE Certification · SGS Inspection · Fireproof Certificate · Wind Resistance Test · Electrical CE / IEC / UL

Model Number: Detachable Container House

Trading Properties

Minimum Order Quantity: 4

Price: 800-1050

Payment Terms: L/C,T/T

Supply Ability: Up to 300 units per day

Tags:

Modern Container House

Affordable Container House

Container Tiny House

Product Description

Affordable 3x6m Detachable Container Office: Low-Cost Prefab Housing for Construction Sites

Product Overview

Elevate your project efficiency with the 3x6m Detachable Container Office (approx. 18m²) engineered by Global House (Suzhou) Co., Ltd. Specifically designed for the rigorous demands of construction sites and industrial hubs, our detachable modular system offers a superior alternative to traditional permanent structures. Each unit is fully prefabricated at our facility and delivered in a flat-pack format. This innovative design not only minimizes international freight expenses but also provides maximum flexibility for rapid on-site deployment of high-quality temporary workspaces and site offices.

Detailed Technical Specifications

Parameter	Specification Details
Standard Size	5950mm (L) x 3000mm (W) x 2800mm (H)
Main Frame	2.3mm to 3.0mm Spray Painted Galvanization Steel Tube
Wall Partition	50mm/75mm/100mm Rock Wool/EPS/PU Sandwich Panel with 0.3-0.5mm color steel plate
Roof System	0.42mm Color Steel Plate + Insulation cotton + multi-waterproof sealing
Ceiling	0.24mm Color Steel Plate
Floor System	15mm/18mm MGO Board or Cement Fiber Board + PVC floor leather
Doors & Windows	0.4mm Steel door; Plastic Steel Sliding Windows * 2 sets
Resistance	Seismic Resistance Grade 8; Wind Resistance Grade 10-11
Service Life	8 - 10 Years

Versatile Application Scenarios

Our specialized detachable units are optimized for professional environments across multiple industries:

Construction & Engineering Hubs: Ideal for site manager offices, multi-layered staff dormitories, on-site dining halls, and strategic meeting rooms.
Mining & Energy Projects: Robust living quarters, field clinics, and heavy-duty sanitation blocks for remote extraction sites.
Commercial & Retail Workspace: Easily converted into mobile reception centers, pop-up administrative offices, or portable showrooms.
Emergency & Institutional Use: Rapid-response disaster relief command centers, mobile medical clinics, and temporary quarantine units.

Core Advantages

Unmatched Logistics Savings: Our optimized flat-pack configuration allows a single 40HQ container to transport up to 18 full sets, significantly lowering your landing cost per unit.
Instant Operational Readiness: Engineered for speed; a team of 4 workers can assemble a complete unit in under 3 hours using standard tools.
Multi-Storey Scalability: The reinforced structural frame supports stacking up to 3 floors, allowing companies to maximize their site’s vertical footprint.
Eco-Friendly Lifecycle: Designed for sustainability, all components are 100% reusable, ensuring zero construction debris during relocation or disassembly.

Efficient 5-Step Installation Guide

Foundation Check: Ensure the surface is level or utilize basic concrete support blocks at the corners.
Chassis Assembly: Connect the heavy-duty bottom beams and corner fittings using high-strength structural bolts.
Vertical Frame: Secure the four corner columns and mount the integrated roof framework.
Enclosure System: Insert the high-insulation sandwich wall panels into the precision-engineered frame tracks.
Final Integration: Install the interior flooring and finalize the pre-configured electrical and lighting systems.

FAQ (Frequently Asked Questions)

Q1: How does the office handle heavy rain and drainage?

Our roof system is engineered with a deep U-shaped drainage channel combined with professional-grade multi-layer sealing, ensuring a 100% leak-proof environment during monsoon conditions.

Q2: What is the packaging method for long-distance export?

We utilize "Flat-packing" technology. All materials are securely bundled and stacked to prevent transit damage while maximizing container space utilization.

Q3: Can we customize the interior layout for an office?

Yes. We offer full customization for internal partitioning, electrical socket placement (LED, LAN), and integrated bathroom or kitchen modules.

Q4: Is a complex foundation required?

No. A simple level ground or concrete piers at the corner load points are sufficient, making it perfect for rapid site setup.

Q5: Is stacking safe for a 3-story office complex?

Absolutely. The 2.3mm-3.0mm galvanized steel chassis is rated for high vertical loads. We provide reinforced pillars specifically for triple-stack configurations.

Q6: Are the wall panels fire-rated?

Yes. We utilize Grade-A fire-resistant Rock Wool or EPS sandwich panels to meet strict site safety regulations.

Q7: Can I relocate the building once the project is finished?

Yes. The modular bolt-together design allows for repeated disassembly and reassembly at new locations without material loss.

Q8: Are electrical and plumbing fixtures included?

We provide optional "plug-and-play" kits, including LED lighting, pre-wired sockets, and full sanitary ware for toilets and shower blocks.

Manufacturer: Global House (Suzhou) Co., Ltd.
