Home > Products > Prefabricated Container House > Modular Prefab Expandable Container House 20ft 40ft Fast Installation
Highlight:

Expandable Container House 20ft

,

Prefab Expandable Container House

,

Prefab Expandable Modular House 20ft

Product Name:
Fast Installation
Dimensions:
Standard 20ft Or 40ft Container Size
Shipment:
Ship Disassembled
Wallthickness:
50mm To 100mm
Floor Loading Capacity:
150 ㎏/㎡
Frame:
Q235B Galvanized Steel
Wallboard:
Glass Wool Sandwich Panels
Application:
Warehouse
Durability:
Weather-resistant And Corrosion-proof Coating
Wind Resistance:
100km/h
Main Materia:
Light Steel Frame & Sandwich Panel
Services:
2D Floor Plan Solution; 3D Model
Cutting:
Saw Cutting
Assemblytime:
1-3 Days Per Unit
Wind Resistence:
120KM/H
Product Name:
Fast Installation
Dimensions:
Standard 20ft Or 40ft Container Size
Shipment:
Ship Disassembled
Wallthickness:
50mm To 100mm
Floor Loading Capacity:
150 ㎏/㎡
Frame:
Q235B Galvanized Steel
Wallboard:
Glass Wool Sandwich Panels
Application:
Warehouse
Durability:
Weather-resistant And Corrosion-proof Coating
Wind Resistance:
100km/h
Main Materia:
Light Steel Frame & Sandwich Panel
Services:
2D Floor Plan Solution; 3D Model
Cutting:
Saw Cutting
Assemblytime:
1-3 Days Per Unit
Wind Resistence:
120KM/H

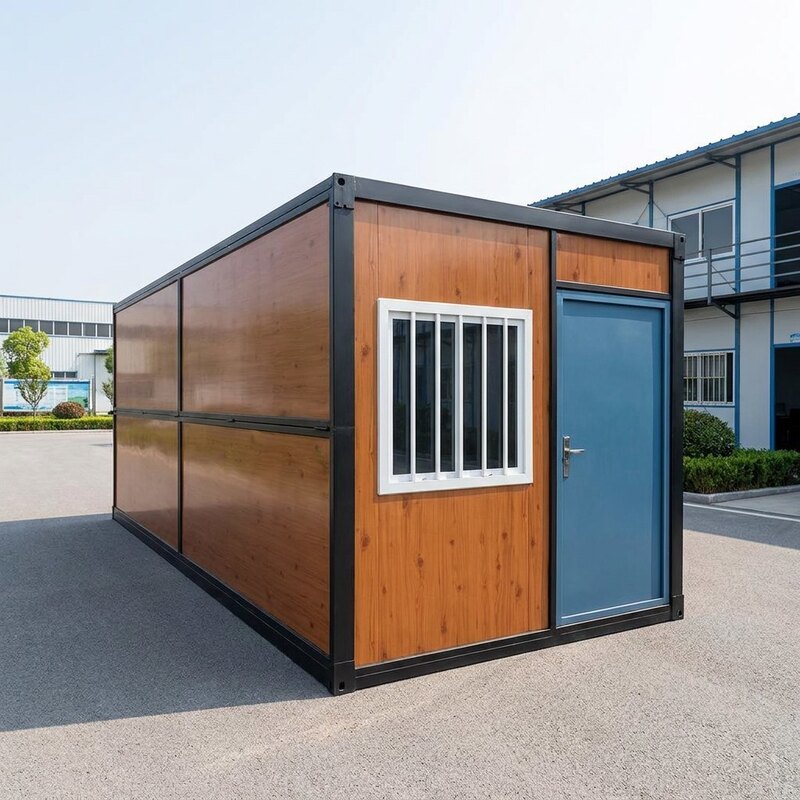

Modular Prefab Expandable Container House 20ft 40ft Fast Installation
Fast Installation Expandable Container House Prefab Modular Expandable Container House
Product Overview
Optimize your industrial infrastructure with the Heavy-Caliber Steel Modular Building engineered by Global House (Suzhou) Co., Ltd. This premium detachable structural cabin offers a highly durable 18m² (3x6m) space, specifically developed to handle heavy vertical loads and intense wear. Designed with a robust, heavy-gauge galvanized skeleton and premium fire-resistant MGO flooring, this module serves as a permanent-grade alternative for temporary setups.
Detailed Technical Specifications
Parameter Specification Details
Standard Size 5950mm (L) x 3000mm (W) x 2800mm (H)
Main Frame 2.3mm to 3.0mm Spray Painted Galvanization Steel Tube
Wall Partition 50mm/75mm/100mm Rock Wool/EPS/PU Sandwich Panel with 0.3-0.5mm color steel plate
Roof System 0.42mm Color Steel Plate + Insulation cotton + multi-waterproof sealing
Ceiling 0.24mm Color Steel Plate
Floor System 15mm/18mm MGO Board or Cement Fiber Board + PVC floor leather
Doors & Windows 0.4mm Steel door; Plastic Steel Sliding Windows * 2 sets
Resistance Seismic Resistance Grade 8; Wind Resistance Grade 10-11
Service Life 8 - 10 Years
Versatile Application Scenarios
  • Industrial Site Headquarters: Premium field executive offices, command centers, and secure technical plotting rooms.
  • Heavy-Duty Resource Exploration: Resilient base camps and mobile laboratories for remote oil, gas, and mining projects exposed to corrosive environments.
  • Rigorous Workforce Accommodations: Secure, multi-level living complexes and centralized dining facilities for large-scale engineering crews.
  • Civil Protection & Security: High-strength disaster recovery centers, tactical field medical wards, and rapid-deployment housing complexes.
Core Advantages
  • Reinforced Heavy-Caliber Engineering: Constructed with an integrated 2.3mm to 3.0mm galvanized steel framework, this modular building safely supports vertical stacking up to 3 floors, tripling floor-space efficiency.
  • High-Durability Flooring System: Equipped with premium 15mm/18mm MGO boards topped with commercial PVC leather, providing excellent moisture resistance, flat structural integrity, and high load-bearing capacity.
  • Bulk Export Freight Savings: Our compact flat-packing system allows a standard 40HQ container to carry up to 18 full sets, driving down international landing costs to a minimum.
  • Rapid Interlocking Setup: Time-optimized for fast turnarounds; a crew of 4 workers can completely bolt one module together in under 3 hours using everyday hand tools.
  • Sustainable Capital Asset: Built for repeated use cycles; you can entirely unbolt, flat-pack, and redeploy the structure at new job sites without causing material degradation or structural fatigue.
Simplified 5-Step Installation Guide
  1. Site Grounding: Ensure a flat layout or anchor the corner points on basic pre-cast concrete piers.
  2. Chassis Integration: Interlock the main galvanized floor beams to the corner castings using heavy-duty structural bolts.
  3. Pillar & Roof Elevation: Erect the four heavy-caliber corner columns and bolt the pre-sealed roof structure securely overhead.
  4. Enclosure Insertion: Slide the high-insulation sandwich wall panels directly into the precision-machined steel frame tracks.
  5. Flooring & Utilities: Secure the fire-resistant MGO boards, roll out the protective PVC finish, and activate the pre-routed "plug-and-play" electrical network.
FAQ (Frequently Asked Questions)
Q1: What structural measures prevent water leakage during extreme storms?
The roof is engineered with an advanced, integrated U-shaped drainage channel paired with multi-layer commercial weather-sealants, providing 100% moisture protection.
Q2: How many units can be sourced in a single bulk shipment?
By using our specialized flat-pack breakdown design, we can load up to 18 individual 3x6m cabins inside one 40HQ ocean container to optimize wholesale logistics.
Q3: Can the interior layout support office and utility partitions?
Yes. We provide adjustable interior partition tracks and customized plumbing kits to easily configure executive offices, server rooms, or private lavatories.
Q4: How do the galvanization and MGO flooring enhance the 8-10 year lifespan?
The 2.3-3.0mm steel is treated with high-bake powder coating over a galvanized layer to stop rust. The high-density MGO flooring avoids rotting and warping from moisture, reducing maintenance.
Q5: Is multi-story stacking safe with this heavy-caliber framework?
Absolutely. The structural framework is certified for multi-level layouts up to 3 stories high. We provide heavy-duty structural connecting links for multi-tier configurations.
Q6: What insulation core options are provided for the sandwich panels?
Buyers can select between Rock Wool, EPS, or PU cores. For professional site safety compliance, Rock Wool is highly recommended due to its Grade-A fire-retardant performance.
Q7: Can this modular building be fully disassembled without material damage?
Yes. The entire cabin uses a bolt-together architectural layout, meaning it can be taken apart, packed flat, and moved to your next project site with zero structural wear.
Q8: Are the electrical fixtures compatible with international voltage codes?
We supply factory pre-wired electrical kits--including LED lights and sockets--tailored precisely to the specific voltage, frequency, and plug criteria of your destination country.
Manufacturer: Global House (Suzhou) Co., Ltd.
