Heavy-Snow Load Detachable Container House | Cold-Climate Prefab Home
Product Details
Place of Origin: Jiangsu, China
Brand Name: Global Container(SuZhou)Co.,Ltd
Certification: ISO 9001 / ISO 14001 / ISO 45001 · CE Certification · SGS Inspection · Fireproof Certificate · Wind Resistance Test · Electrical CE / IEC / UL
Model Number: Detachable Container House
Payment & Shipping Terms
Minimum Order Quantity: 4
Price: 800-1050
Packaging Details: 18 units per 40HQ container.
Delivery Time: 10-20 work day
Payment Terms: L/C,T/T
Supply Ability: Up to 300 units per day
prefab detachable tiny house
,prefab detachable container house
,20ft detachable tiny house
Dimensions: |
Standard 20ft Or 40ft Container Size |
Shipment: |
Ship Disassembled |
Wallthickness: |
50mm To 100mm |
Floor Loading Capacity: |
150 ㎏/㎡ |
Frame: |
Q235B Galvanized Steel |
Wallboard: |
Glass Wool Sandwich Panels |
Application: |
Warehouse |
Durability: |
Weather-resistant And Corrosion-proof Coating |
Wind Resistance: |
100km/h |
Main Materia: |
Light Steel Frame & Sandwich Panel |
Services: |
2D Floor Plan Solution; 3D Model |
Productname: |
Prefabricated Container House |
Cutting: |
Saw Cutting |
Assemblytime: |
1-3 Days Per Unit |
Wind Resistence: |
120KM/H |
Dimensions: |
Standard 20ft Or 40ft Container Size |
Shipment: |
Ship Disassembled |
Wallthickness: |
50mm To 100mm |
Floor Loading Capacity: |
150 ㎏/㎡ |
Frame: |
Q235B Galvanized Steel |
Wallboard: |
Glass Wool Sandwich Panels |
Application: |
Warehouse |
Durability: |
Weather-resistant And Corrosion-proof Coating |
Wind Resistance: |
100km/h |
Main Materia: |
Light Steel Frame & Sandwich Panel |
Services: |
2D Floor Plan Solution; 3D Model |
Productname: |
Prefabricated Container House |
Cutting: |
Saw Cutting |
Assemblytime: |
1-3 Days Per Unit |
Wind Resistence: |
120KM/H |

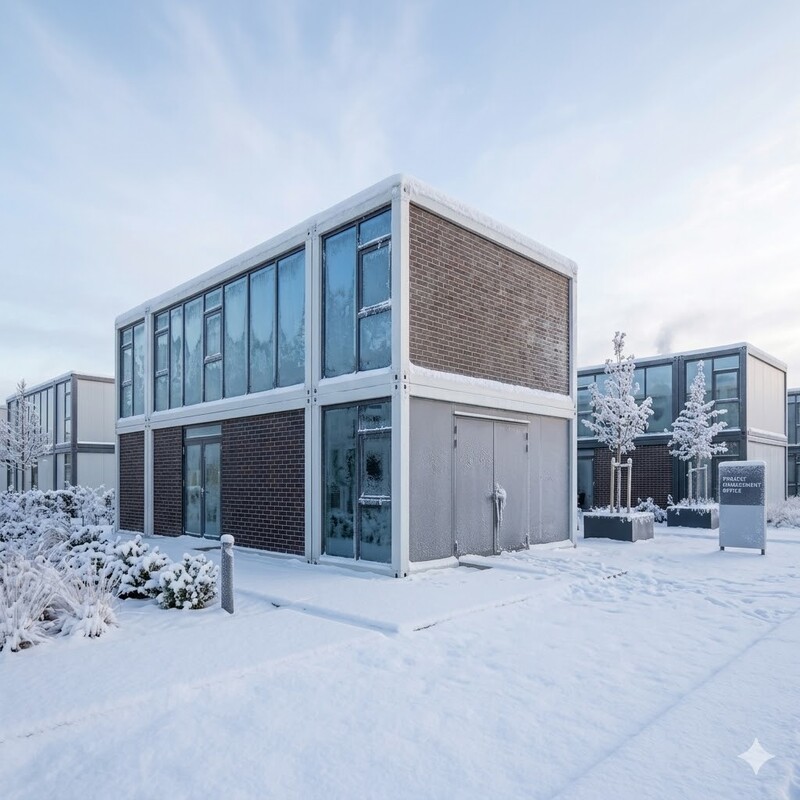

Endure the most punishing winter blizzards with the winterized Detachable Container House engineered by Global House (Suzhou) Co., Ltd. Specially modified for Central Asia's extreme continental climate, where temperatures plunge below -40°C, this 18m² modular cabin features extra-thick, high-density polyurethane (PU) or rock wool insulated sandwich panels.
The roof structure is structurally reinforced to support massive snow loads and ice accumulation typical of northern Kazakhstan. Delivered flat-packed to save on overland freight, it provides an ultra-warm, energy-efficient, and structurally safe haven for remote workers and residential extensions.
| Standard Size | 5950mm (L) x 3000mm (W) x 2800mm (H) |
|---|---|
| Main Frame | 2.3mm to 3.0mm Spray Painted Galvanization Steel Tube |
| Wall Partition | 50mm/75mm/100mm Rock Wool/EPS/PU Sandwich Panel with 0.3-0.5mm color steel plate |
| Roof System | 0.42mm Color Steel Plate + Insulation cotton + multi-waterproof sealing |
| Ceiling | 0.24mm Color Steel Plate |
| Floor System | 15mm/18mm MGO Board or Cement Fiber Board + PVC floor leather |
| Doors & Windows | 0.4mm Steel door; Plastic Steel Sliding Windows * 2 sets |
| Resistance | Seismic Resistance Grade 8; Wind Resistance Grade 10-11 |
| Service Life | 8 - 10 Years |
- Modern Backyard Guest Villas: An elegant, detached secondary dwelling for family members, teenage retreats, or independent home offices.
- Boutique Resort & Airbnb Homestays: Striking multi-level holiday cabins featuring a scenic upper balcony deck to maximize customer visual appreciation.
- Premium Multi-Generational Housing: Highly flexible, scalable independent micro-apartments that expand your living square footage without intrusive construction.
- Private Artistic & Leisure Studios: Insulated, bright, and isolated field workspaces for writers, home gym setups, or remote executives.
- Multi-Floor Vertical Architecture: The specialized modular frame doubles your domestic footprint vertically. Incorporating an external staircase and viewing terrace creates an open, luxurious outdoor space while saving valuable backyard land.
- Exceptional Shipping Container Economics: Engineered for optimal overseas transport; our compact breakdown packing allows a standard 40HQ ocean container to comfortably carry up to 18 complete sets, minimizing landed import costs.
- Rapid Turnkey Home Setup: Bypassing lengthy local contractor timelines; a basic assembly team of 4 workers can completely bolt one structural module together in under 3 hours using everyday manual tools.
- Structural Durability & Resilience: Built with a reinforced 2.3mm to 3.0mm galvanized steel framework, this residential cabin comfortably handles Wind Levels 10-11 and is certified for vertical stacking up to 3 floors high.
- Clean, Reusable Real Estate Asset: Relying entirely on clean, high-strength bolted connectivity, this modular home can be fully unbolted, packed flat, and moved to your next property or city with zero construction waste or material damage.
- Site Inspection: Prepare a flat layout in your backyard or set up elementary, level concrete support piers at the main load-bearing corners.
- Chassis Fastening: Securely connect the primary galvanized floor perimeter framing to the corner castings using high-tensile structural bolts.
- Frame & Balcony Setup: Erect the four vertical columns, bolt the pre-sealed roof framework tightly, and attach the external stairwell and balcony railings.
- Enclosure Installation: Slide the high-insulation sandwich wall panels and weather-tight window systems smoothly into the precision frame channels.
- Residential Finishing: Lay down the premium, fire-retardant MGO flooring, roll out the durable PVC leather finish, and power up the pre-routed "plug-and-play" electrical distribution grid.
Yes. The integrated roof infrastructure features an advanced, deep U-shaped internal drainage network and professional-grade multi-layer sealing, ensuring the lower bedroom/living suite remains completely dry and leak-proof during severe weather.
We use specialized flat-pack breakdown technology. All components--including the upper balcony deck posts, railings, brackets, and the steel staircase steps--are securely bundled together within the flat-pack kit to prevent transit damage and maximize shipping container space.
Absolutely. We provide extensive cosmetic and structural customization options. You can select different sandwich panel insulation types, customize door/window layouts, or upgrade to large glass sliding doors to maximize natural light and yard views.
No heavy civil concrete work or deep foundations are required. A basic leveled ground area or simple pre-cast concrete pier blocks at the main corner load points are completely sufficient for stable operation.
Yes. The 2.3mm-3.0mm galvanized structural steel chassis is rated for heavy vertical and seismic loads. It safely supports up to 3-story vertical configurations, and we supply high-tensile structural tie-plates to ensure total safety for multi-level layouts.
Yes. We offer Grade-A fire-resistant Rock Wool or EPS sandwich wall panels, allowing your backyard guest home to easily comply with strict local residential safety and municipal fire regulations.
Yes. The detachable bolt-connected design is engineered specifically for long-term mobility. You can effortlessly unbolt the entire dual-level complex, pack it flat, and haul it away to your next property without losing any materials.
We supply factory pre-wired "plug-and-play" electrical kits--inclusive of bright LED lighting networks and safe power sockets--pre-configured exactly to your destination country's specific voltage, frequency, and plug criteria.
